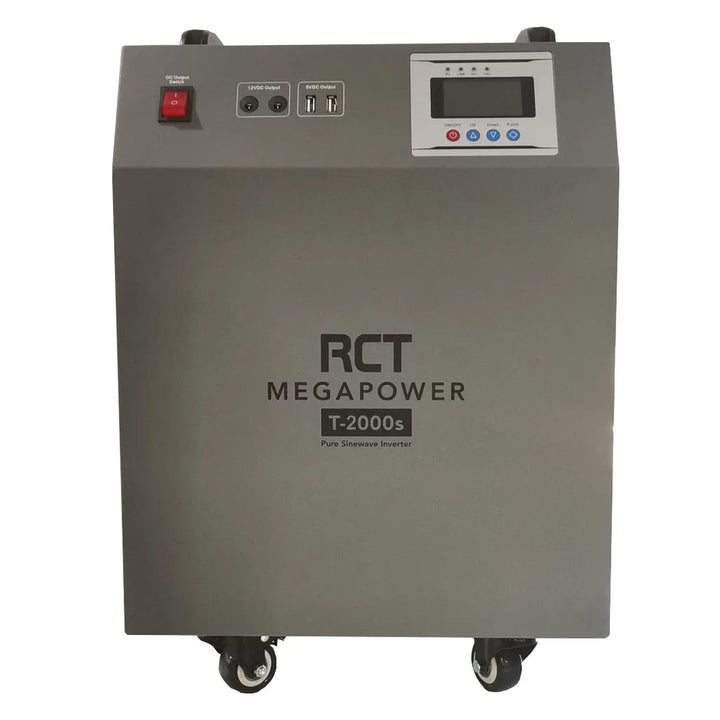

RCT MegaPower MP-T2000S 2kVa/2kW 24V Inverter Trolley with 2 x 100Ah Batteries
Model :
Specifications
- Pure Sinewave for Sensitive Electronics & Motorised Loads.
- Microprocessor Control Optimizes Reliability.
- Input Power Factor Correction.
- Output Power Factor 1.0.
- Comprehensive Display Allows Easy Monitoring & Access of UPS Status.
- Built-in MPPT solar charger.
- 2 x USB 5 V DC output and 2 x 12 V DC output.
- Battery cut off switch for safety.
- Pre-installed batteries.
Inverter Battery
- Rated power: 2000 W.
- Output voltage: 220 VAC.
- Output frequency: 50 / 60 Hz.
- Output waveform: Pure Sine Wave.
- Battery Voltage: 24V.
- Battery Specifications: 100Ah 12V x 2.
Solar Input
- Maximum photovoltaic voltage (VDC): ≤ 150 V
- Charge voltage (VDC): 35 V - 150 V
- Rated charge current (A): 30 A
- Maximum power (Wp): 800 Wp
- Voltage overcharge protection (VDC): 28.4 V
- Voltage overcharge recovery (VDC): 28.0 V
- Voltage of floating charge (VDC): 27.4V
DC Output
- Voltage of high-voltage protection (VDC): 32 V
- Voltage of high-voltage recovery (VDC): 32.4 V
- Voltage of low-voltage recovery (VDC): 25.2 V
- Voltage of low-voltage protection (VDC): 22V
- 5 V DC USB Output port: 2 Units / MAX 2 A
- 12 VDC Output port: 2 DC Ports (Max 2 A)
- Starting temperature of the exhaust fan: > 45ºC
- Ambient temperature for operation: 0 - 40ºC
- Ambient temperature for storage: -25 - +55ºC
- Operation / storage conditions: 0-90% (No Condensation)
General
- Charge by a mains supply rated voltage: 220VAC.
- Charge Current: 30A(max).
- Product dimensions: 380 mm x 380 mm x 520 mm.
Battery (2 x 12V/100Ah)
- Rated Voltage: 12V/Battery (Note this is a 24V System).
- Capacity (10hr,1.80V/Cell): 100Ah.
- Weight: 31.5Kg.
- Max Discharge Current: 30I10A(3min).
- Max Charge Current: ≤0.25A C10.
- Self- Discharge (25℃): ≤3%/month.
- Recommended Using Temperature: 15°C~25°C.
- Cover Material: ABS.
- Dimensions: 407mm x 174mm x 209mm.
PLEASE NOTE
THIS INVERTER HAS FANS THAT RUN ALL THE TIME.
So it is not ideal to install in a room where the fans will be too noisy.
The Inverter can be placed in another room and your equipment connected with an extension cord
OR you can get an electrician to install an Inverter Sub Board next to your Main DB board and connect certain circuits that will run on the Inverter.
The inverter cannot be used with the following appliances : hair dryers, irons, kettles, toasters, electric blankets, heaters, aircon, washing machine, tumble dryer or fridges. Nothing that generates heat.
Specifications
- Pure Sinewave for Sensitive Electronics & Motorised Loads.
- Microprocessor Control Optimizes Reliability.
- Input Power Factor Correction.
- Output Power Factor 1.0.
- Comprehensive Display Allows Easy Monitoring & Access of UPS Status.
- Built-in MPPT solar charger.
- 2 x USB 5 V DC output and 2 x 12 V DC output.
- Battery cut off switch for safety.
- Pre-installed batteries.
Inverter Battery
- Rated power: 2000 W.
- Output voltage: 220 VAC.
- Output frequency: 50 / 60 Hz.
- Output waveform: Pure Sine Wave.
- Battery Voltage: 24V.
- Battery Specifications: 100Ah 12V x 2.
Solar Input
- Maximum photovoltaic voltage (VDC): ≤ 150 V
- Charge voltage (VDC): 35 V - 150 V
- Rated charge current (A): 30 A
- Maximum power (Wp): 800 Wp
- Voltage overcharge protection (VDC): 28.4 V
- Voltage overcharge recovery (VDC): 28.0 V
- Voltage of floating charge (VDC): 27.4V
DC Output
- Voltage of high-voltage protection (VDC): 32 V
- Voltage of high-voltage recovery (VDC): 32.4 V
- Voltage of low-voltage recovery (VDC): 25.2 V
- Voltage of low-voltage protection (VDC): 22V
- 5 V DC USB Output port: 2 Units / MAX 2 A
- 12 VDC Output port: 2 DC Ports (Max 2 A)
- Starting temperature of the exhaust fan: > 45ºC
- Ambient temperature for operation: 0 - 40ºC
- Ambient temperature for storage: -25 - +55ºC
- Operation / storage conditions: 0-90% (No Condensation)
General
- Charge by a mains supply rated voltage: 220VAC.
- Charge Current: 30A(max).
- Product dimensions: 380 mm x 380 mm x 520 mm.
Battery (2 x 12V/100Ah)
- Rated Voltage: 12V/Battery (Note this is a 24V System).
- Capacity (10hr,1.80V/Cell): 100Ah.
- Weight: 31.5Kg.
- Max Discharge Current: 30I10A(3min).
- Max Charge Current: ≤0.25A C10.
- Self- Discharge (25℃): ≤3%/month.
- Recommended Using Temperature: 15°C~25°C.
- Cover Material: ABS.
- Dimensions: 407mm x 174mm x 209mm.
PLEASE NOTE
THIS INVERTER HAS FANS THAT RUN ALL THE TIME.
So it is not ideal to install in a room where the fans will be too noisy.
The Inverter can be placed in another room and your equipment connected with an extension cord
OR you can get an electrician to install an Inverter Sub Board next to your Main DB board and connect certain circuits that will run on the Inverter.
The inverter cannot be used with the following appliances : hair dryers, irons, kettles, toasters, electric blankets, heaters, aircon, washing machine, tumble dryer or fridges. Nothing that generates heat.
